Featured products - ATEX components
ATEX components - see our featured products
We have gathered our specially selected products within ATEX components.
Do you need help?
ATEX switches - ZONE 1/2: ATEX II 2 GD

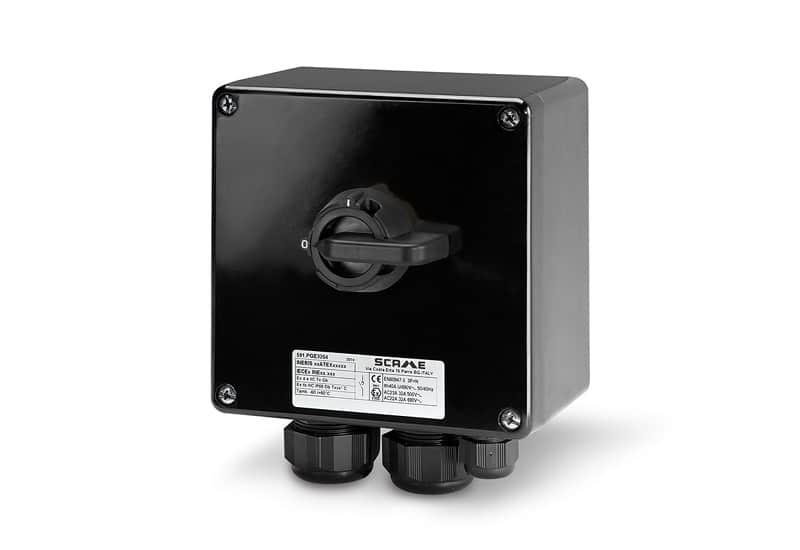

SWITCH, 3/4 POL+ 1NO, 20A, ATEX II 2GD 591 PGE2004-1, GRP, BLACK GREB, ENCLOSURE:160x160x90, Scame
Fiberglass reinforced enclosed switch from the ISOLATORS-EX[GD] series, designed for use in potentially explosive environments.
Advantages:
- 20 A, 3/4-pin + 1NO, 690 V AC
- ATEX II 2 GD Ex db eb IIC T6 Gb/Ex tb IIIC T80 °C Db
- IP66 tightness and IK07 impact resistance (7 J). Lockable handle in black
- GRP enclosure 160 x 160 x 90 mm, 2x M25 cable entries
- Available in 20A, 25A, 32A, 40A, and 63A
- Available in 2,3 & 4 poles and with auxiliary contacts NO+NC & NO/NC
- Possibility of EMC protection
- Item no.: 55926

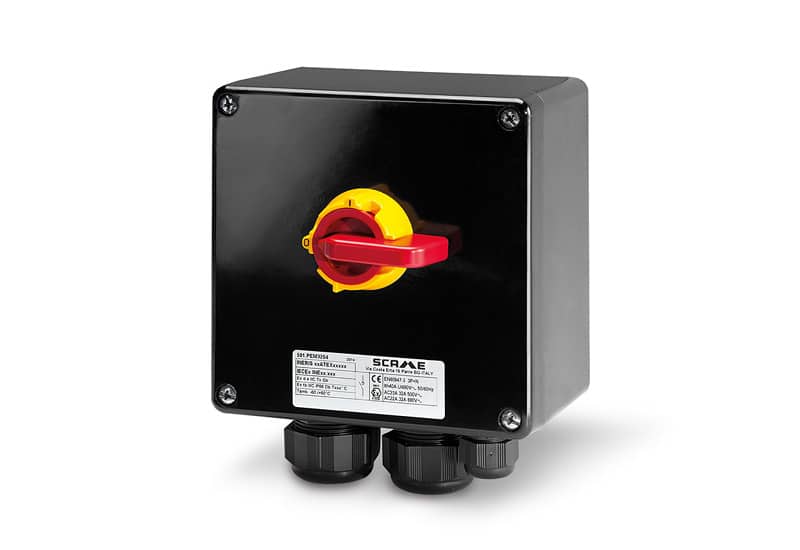

SWITCH, 3/4 POL+ 1NO, 20A, ATEX II 2GD 591 PEM2004-1, GRP, RED/YELLOW GREB, ENCLOSURE:160x160x90, Scame
Fiberglass reinforced enclosed switch from the ISOLATORS-EX[GD] series, designed for use in potentially explosive environments.
Advantages:
- 20 A, 3/4-pin + 1NO, 690 V AC
- ATEX II 2 GD Ex db eb IIC T6 Gb/Ex tb IIIC T80 °C Db
- IP66 tightness and IK07 impact resistance (7 J). Lockable handle red/yellow
- GRP enclosure 160 x 160 x 90 mm, 2x M25 cable entries
- Available in 20A, 25A, 32A, 40A, and 63A
- Available in 2,3 & 4 poles and with auxiliary contacts NO+NC & NO/NC
- Possibility of EMC protection
- Item no.: 55925

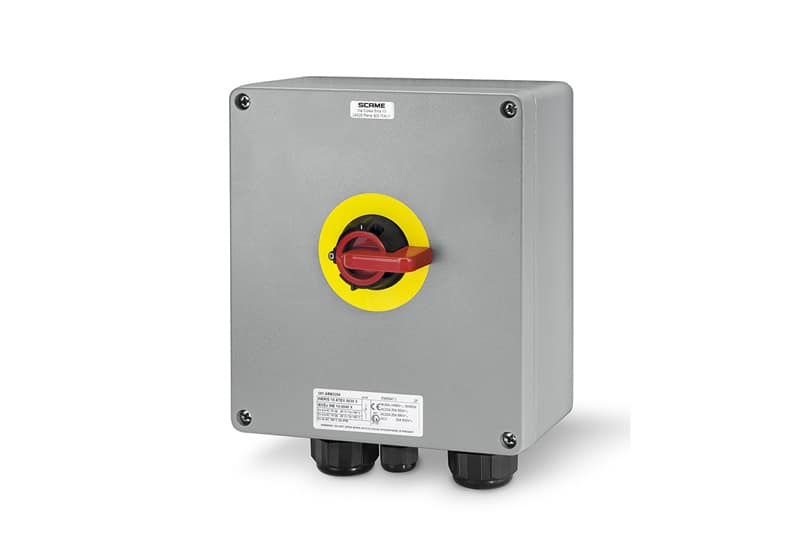

SWITCH, 3/4 POL+ 1NO, 20A, ATEX II 2GD 591 AEM2004-1, RED/YELLOW GREB, ALUKAPSLING:202x232x142, SCAME
Aluminum enclosed switch from the ISOLATORS-EX[GD] series, designed for use in explosive environments.
Advantages:
- 20 A, 3/4-pin + 1NO, 690 V AC
- ATEX II 2 GD Ex db eb IIC T6 Gb/Ex tb IIIC T80 °C Db
- IP66 tightness and IK07 impact resistance (7 J). Lockable handle red/yellow
- Enclosure 202 x 232 x 142 mm, 2x M25 cable entries
- Available in 20A, 25A, 32A, 40A, and 63A
- NO+NC & NO/NC
- Possibility of EMC protection
- Item no.: 56010
SWITCH, 3/4 POL+ 1NO, 20A, ATEX II 2GD 591 AGE2004-1, BLACK GRB, ALUKAPSLING:202x232x142, Scame
Aluminum enclosed switch from the ISOLATORS-EX[GD] series, designed for use in explosive environments.
Advantages:
- 20 A, 3/4-pin + 1NO, 690 V AC
- ATEX II 2 GD Ex db eb IIC T6 Gb/Ex tb IIIC T80 °C Db
- IP66 tightness and IK07 impact resistance (7 J) Lockable handle black
- Enclosure 202 x 232 x 142 mm, 2x M25 cable entries
- Available in 20A, 25A, 32A, 40A, and 63A
- Available in 2, 3 & 4 poles and with auxiliary contacts NO+NC & NO/NC
- Possibility of EMC protection
- Item no.: 56011

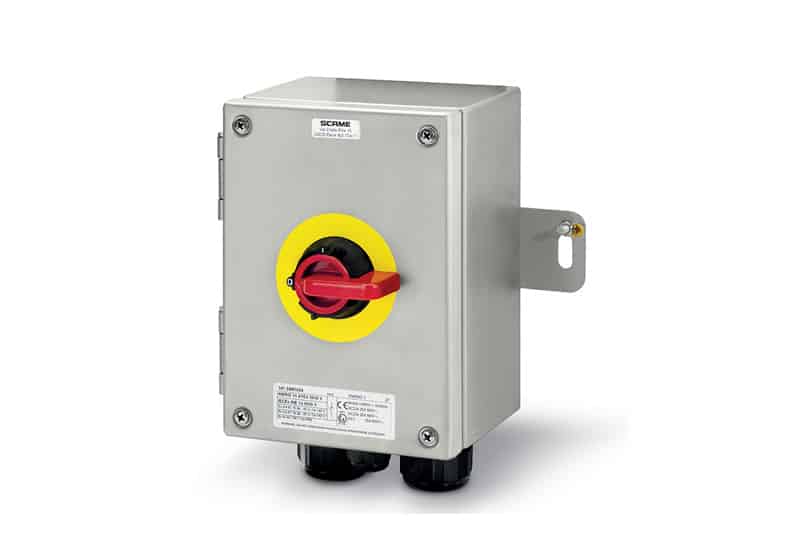

SWITCH, 3/4 POL+ 1NO, 20A, ATEX II 2GD 591 SEM2004-1, RED/YELLOW GREB, STAINLESS STEEL ENCLOSURE:141x200x126, Scame
Stainless steel INOX enclosed switch from the ISOLATORS-EX[GD] series, designed for use in potentially explosive environments.
Advantages:
- 20 A, 3/4-pin + 1NO, 690 V AC
- ATEX II 2 GD Ex db eb IIC T6 Gb/Ex tb IIIC T80 °C Db
- IP66 tightness and IK07 impact resistance (7 J). Lockable handle red/yellow
- Enclosure 141 x 200 x 126 mm, 2x M25 cable entries
- Available in 20A, 25A, 32A, 40A, and 63A
- Available in 2, 3 & 4 poles and with auxiliary contacts NO+NC & NO/NC
- Item no.: 56014

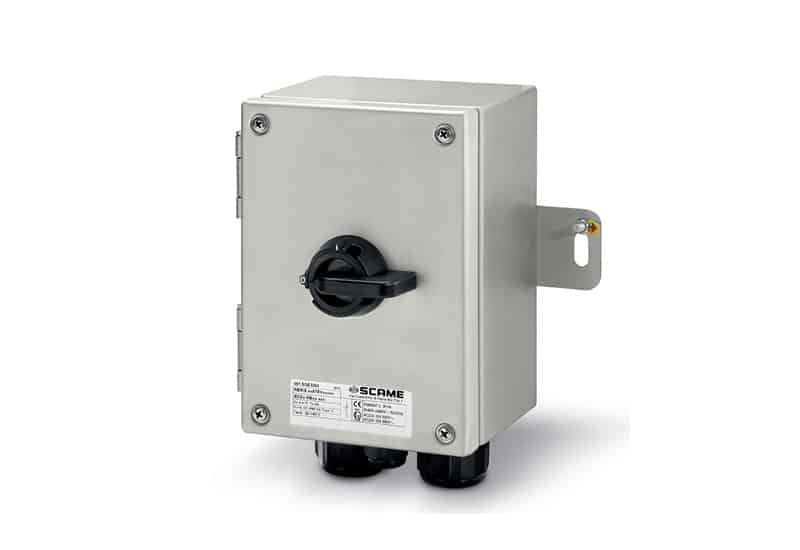

SWITCH, 3/4 POL+ 1NO, 20A, ATEX II 2GD 591 SGE2004-1, BLACK GRB, STAINLESS STEEL ENCLOSURE:141x200x126, Scame
Stainless steel INOX enclosed switch from the ISOLATORS-EX[GD] series, designed for use in potentially explosive environments.
Advantages:
- 20 A, 3/4-pin + 1NO, 690 V AC
- ATEX II 2 GD Ex db eb IIC T6 Gb/Ex tb IIIC T80 °C Db
- IP66 tightness and IK07 impact resistance (7 J). Lockable handle black
- Enclosure 141 x 200 x 126 mm, 2x M25 cable entries
- Available in 20A, 25A, 32A, 40A, and 63A
- Available in 2, 3 & 4 poles and with auxiliary contacts NO+NC & NO/NC
- Item no.: 56013
ATEX switches - ZONE 21/22 - ATEX II 2D

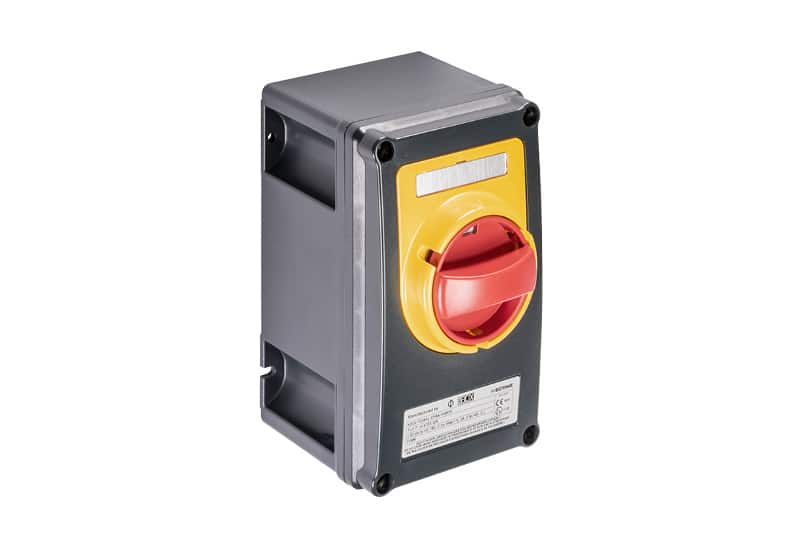

SWITCH, 3POL +1NO/1NC, 25A, ATEX ZONE 22/21 KG20 T203/NL-EXRA KNBOX (ATEX), Kraus & Naimer
Thermoplastic ATEX approved switch for zone 21/22 (Dust EX, Dust group D).
Advantages:
- 25 A, 3-pin + 1 NO/NC, 7.5 kW, 3x400V, AC-23B
- ATEX II 2 D Ex tb IIIC Db IP66, impact resistance 7 J
- Incl. 2x M25 + 1x M20 blind plug screw connection
- Enclosure 115 x 190 x 128 mm
- Available in 25A, 32A, 40A, and 63A
- Available with 3, 4 and 6 poles and auxiliary contact NO/NC
- EMC versions available
- Item no.: 53053

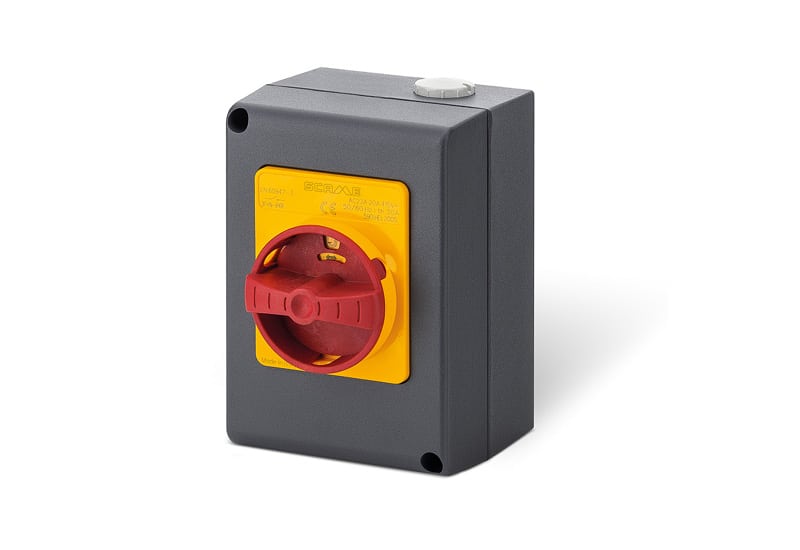

SWITCH, 3 POL, 20A, ATEX II 2D (21&22) 590 XHEM2003, RED/YELLOW GREB, IP65, ALU BOX:105x150x82, Scame
Aluminum DIE-CAST enclosed ATEX approved switch for zone 21/22 (Dust EX, Dust group D).
Advantages:
- 20 A, 3-pole, -25-60 °C
- ATEX II 2 GD Ex db eb IIC T6 Gb/Ex tb IIIC T80 °C Db
- IP66 tightness and IK07 impact resistance (7 J). Lockable handle red/yellow
- Enclosure 105 x 150 x 82 mm, 2x M25 cable entries + 1 x M20
- Available in 20A, 25A, 32A, 40A, and 63A
- Available in 2, 3 & 4 poles and with auxiliary contacts 1NO + 1NC & NO/NC
- Item no.: 56016

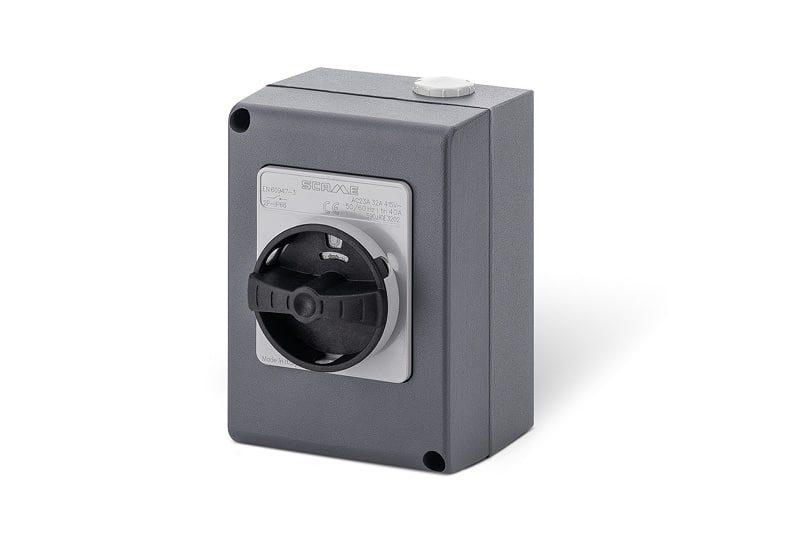

SWITCH, 3 POL, 20A, ATEX II 2D (21&22) 590 XHGE2003, BLACK GREB, IP65, ALUKAPSLING:105x150x82, Scame
Aluminum DIE-CAST enclosed ATEX approved switch for zone 21/22 (Dust EX, Dust group D).
Advantages:
- 20 A, 3-pole, -25-60 °C
- ATEX II 2 GD Ex db eb IIC T6 Gb/Ex tb IIIC T80 °C Db
- IP66 tightness and IK07 impact resistance (7 J). Lockable handle black
- Enclosure 105 x 150 x 82 mm, 2x M25 cable entries + 1 x M20
- Available in 20A, 25A, 32A, 40A, and 63A
- Available in 2, 3 & 4 poles and with auxiliary contacts 1NO + 1NC & NO/NC
- Item no.: 56015

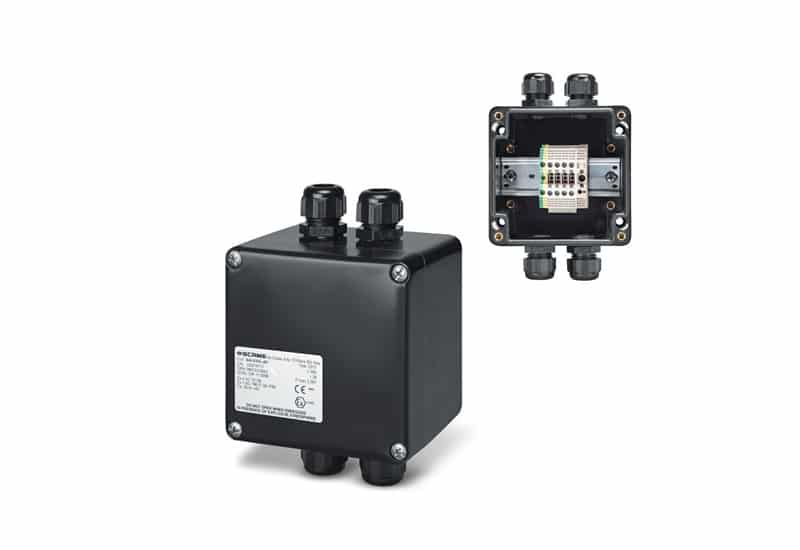

ATEX terminal boxes/junction boxes

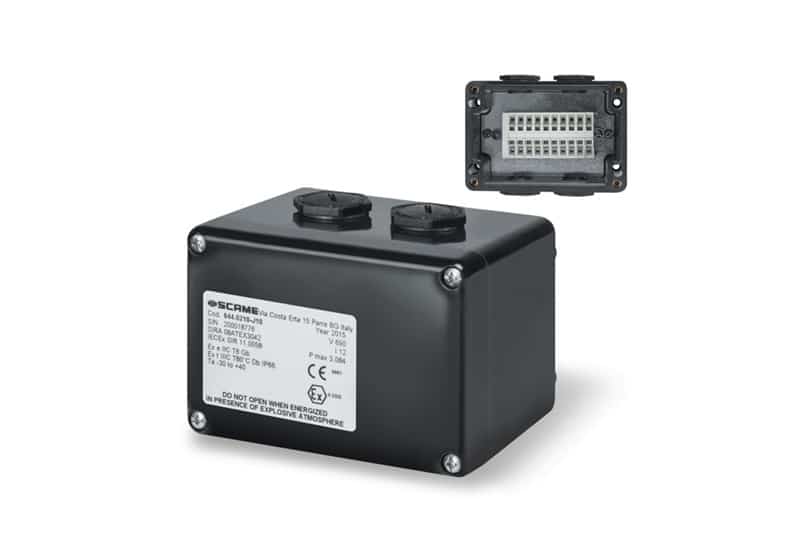

ATEX-TERMINAL BOXES, 10x2,5 MM TERMINALS, 12A ZENITH P, BLACK, 690V, IP66, 3050W, II 2GD, Scame
Robust terminal box/junction box in the ZENITH-P series for ATEX ZONE II 2GD.
Advantages:
- 12 A, 690 V. 3050 W
- ATEX II 2 GD Ex eb IIC T6 Gb/Ex tb IIIC T80 °C Db
- IP66, IK0 protection
- 10 x 2.5 mm² CAGE TERMINAL
- Working temperature -30 °C to +40 °C
- 4 x M20 cable entries, Enclosure 110 x 75 x 55 mm
- Item no.: 55979
ATEX-TERMINAL BOXES, 4x WDU, 4,0MM TERMINALS, 24A ZENITH P, BLACK, 690V, IP66, 2170W, II 2GD, Scame
Robust terminal box/junction box in the ZENITH-P series for ATEX ZONE II 2GD.
Advantages:
- 24 A, 690 V. 2170 W
- ATEX II 2 GD Ex eb IIC T6 Gb/Ex tb IIIC T80 °C Db
- IP66, IK07 protection
- 4 x WDU 4.0 mm²
- Working temperature -30 °C to +40 °C
- 4 x M20 cable entries. Enclosure 122 x 120 x 90 mm
- Item no.: 55978
ATEX-TERMINAL BOXES, 8x4,0 MM WDU TERMINALS, 20A ZENITH P, BLACK, 550V, IP66, 3010W, II 2GD, Scame
Robust terminal box/junction box in the ZENITH-P series for ATEX ZONE II 2GD.
Advantages:
- 20 A, 550 V AC. 3010 W
- ATEX II 2 GD Ex eb IIC T6 Gb/Ex tb IIIC T80 °C Db.
- IP66, IK07 protection
- 8 x WDU 4.0 mm² (BRIDGED 2/2)
- Working temperature -30 °C to +40 °C
- 4 x M20 cable entries. Enclosure 122 x 120 x 90 mm
- Item no.: 55980
ATEX control boxes

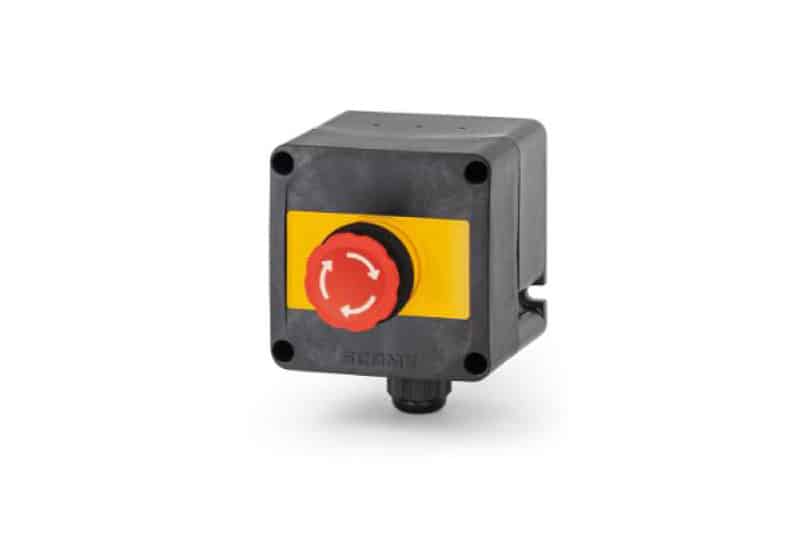

ATEX CONTROL BOX, 1 E-STOP ROTARY VALVE - 2NC COMPACT-EX 16A, 250V, 1660W, IP66, II 2GD, THPLAST, Scame
Thermoplastic emergency stop box from the COMPACT-EX[GD] series with rotating emergency stop function.
Advantages:
- 16 A, 250 V AC, AC12.1660 W
- ATEX II 2 GD Ex db eb IIC T6 Gb/Ex tb IIIC T80 °C Db
- IP66, IK07 protection
- Working temperature -35 °C to +40 °C
- 1 x M20 cable entry. Enclosure 95 x 95 x 80mm
- Item no.: 55953
ATEX CONTROL BOX, 1 E-STOP PRESSURE VALVE - 2NC COMPACT-EX 16A, 250V, 1660W, IP66, II 2GD, THPLAST, Scame
Thermoplastic emergency stop box from the COMPACT-EX[GD] series with pull-to-release.
Advantages:
- 16 A, 250 V AC, AC12.1660 W
- ATEX II 2 GD Ex db eb IIC T6 Gb/Ex tb IIIC T80 °C Db
- IP66, IK07 protection
- Working temperature -35 °C to +40 °C
- 1 x M20 cable entry. Enclosure 95 x 95 x 80 mm
- Item no.: 55952

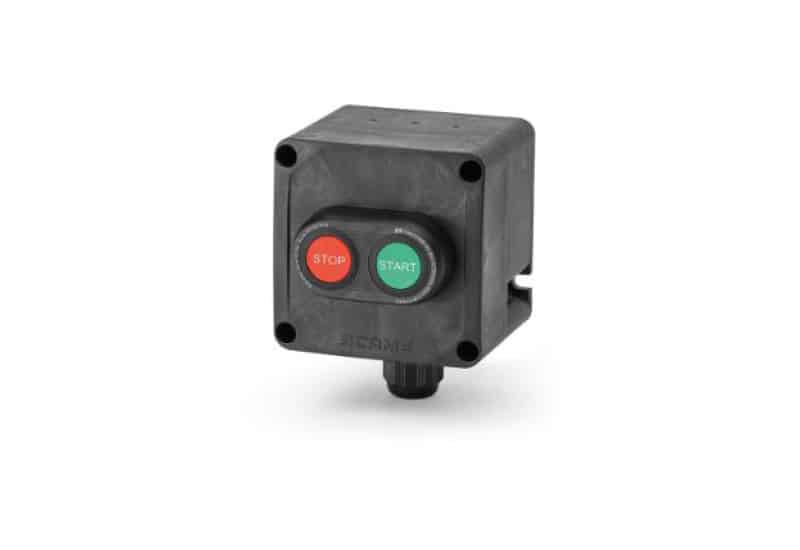

ATEX CONTROL BOXES, STOP - START, 2 BUTTONS - 1NO/NC COMPACT-EX 16A, 250V, 1660W, IP66, II 2GD, THPLAST, Scame
Thermal load start/stop box from the COMPACT-EX[GD] series.
Advantages:
- 16 A, 250 V AC, AC12. 1660 W
- ATEX II 2 GD Ex db eb IIC T6 Gb/Ex tb IIIC T80 °C Db IP66
- IP66, IK07 protection
- Working temperature -35 °C to +40 °C
- 1 x M20 cable entry. Enclosure 95 x 95 x 80 mm
- Item no.: 55955
ATEX wall outlet

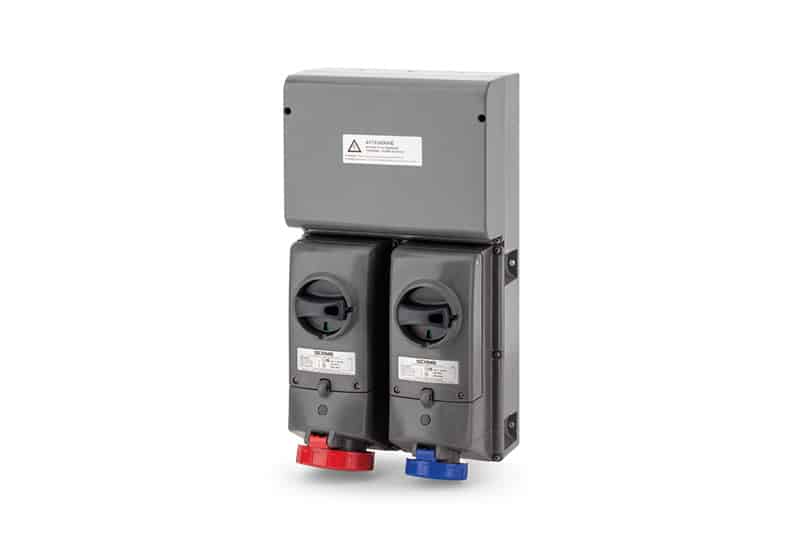

ATEX distribution cabinet 32 A, 579.EX20-105, Scame
Surface-mounted distribution cabinet from the ADVANCE-GRP series for dust and gas areas.
Advantages:
- 32 A, 400 V AC
- ATEX II 2 GD Ex db eb IIC T6 Gb/Ex tb IIIC T80 °C Db
- IP66 tightness and operating temperature: -25 °C to +60 °C
- GRP enclosure, self-extinguishing UL94 V0

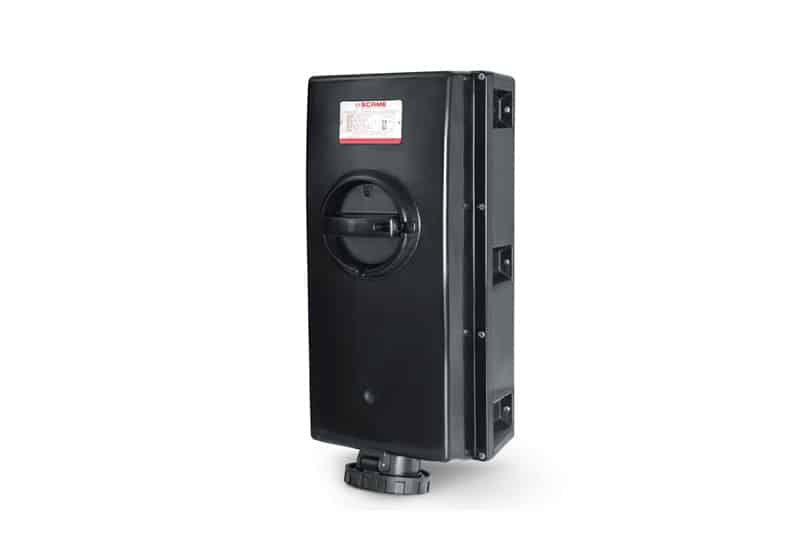

ATEX socket 125 A 3P+E, 504.125867, Scame
Heavy-duty socket with mechanical interlock for use in harsh EX environments.
Advantages:
- 125 A, 3P+E, 600-690 V AC
- ATEX II 2 GD Ex db eb IIC T6 Gb/Ex tb IIIC T80 °C Db
- IP66, made of glass fiber reinforced polyester (GRP)
- Option for padlock locking in OFF position

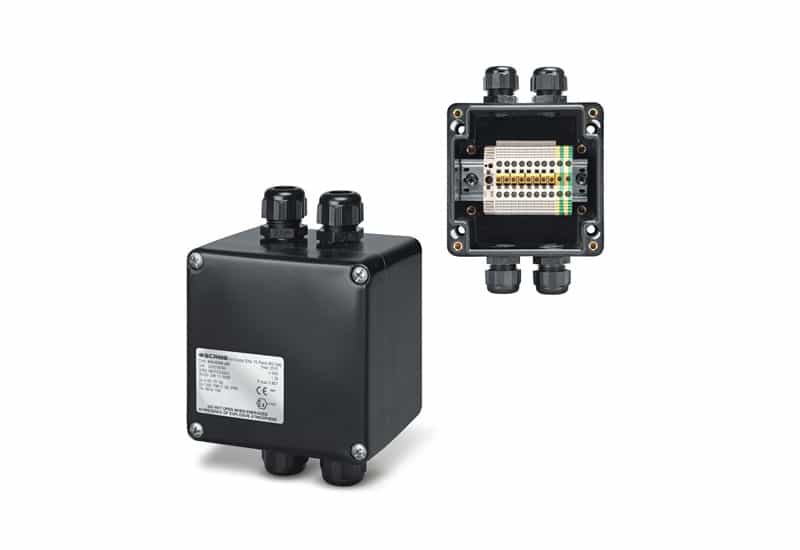

ATEX junction box 160x160x90 mm, 644.0585-168710, Scame
Large surface-mounted junction box for demanding industrial environments.
Advantages:
- 20 A, 550 V AC
- ATEX II 2 GD Ex eb IIC T6 Gb/Ex tb IIIC T80 °C Db
- IP66 and IK07 enclosure rating
- Thermoset, black housing, 4 x M25 cable entries
ATEX connector

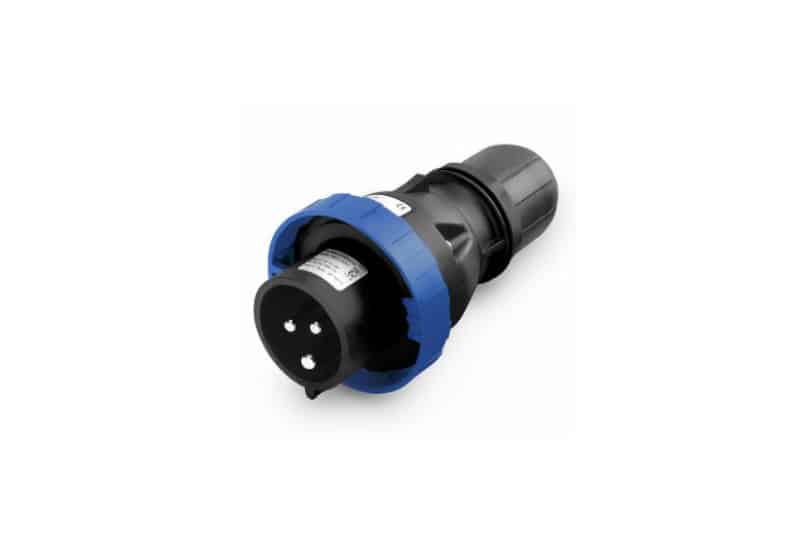

CEE-CONNECTOR, ATEX, MALE CONNECTOR, SHEATH CLAMP, EX II 2GD 16A 2P+ E+ 6H 200-250V (BLUE) IP66, 60Hz 50Hz, Scame
Compact plug from the OPTIMA-EX[GD] series, designed for use in explosive environments (gas and dust).
Advantages:
- 16 A, 2P+E, 200-250 V AC, 6H
- ATEX II 2 GD Ex db eb IIC T6 Gb/Ex tb IIIC T80 °C Db
- IP66, IK07 protection
- Operating temperature -50 °C to +60 °C
- Available in 16A, 32A, 63A and 125A in 3, 4 and 5-pin versions
- Item no.: 55948
CEE-CONNECTOR, ATEX, MALE CONNECTOR, SHEATH CLAMP, EX II 2GD 32A 2P+ E+ 6H 200-250V (BLUE) IP66, 60Hz 50Hz, Scame
Compact plug from the OPTIMA-EX[GD] series, designed for use in explosive environments (gas and dust).
Advantages:
- 32 A, 2P+E, 200-250 V AC, 6H
- ATEX II 2 GD Ex db eb IIC T6 Gb/Ex tb IIIC T80 °C Db
- IP66, IK07 protection
- Operating temperature -50 °C to +60 °C
- Available in 16A, 32A, 63A and 125A in 3, 4 and 5-pin versions
- Item no.: 55949

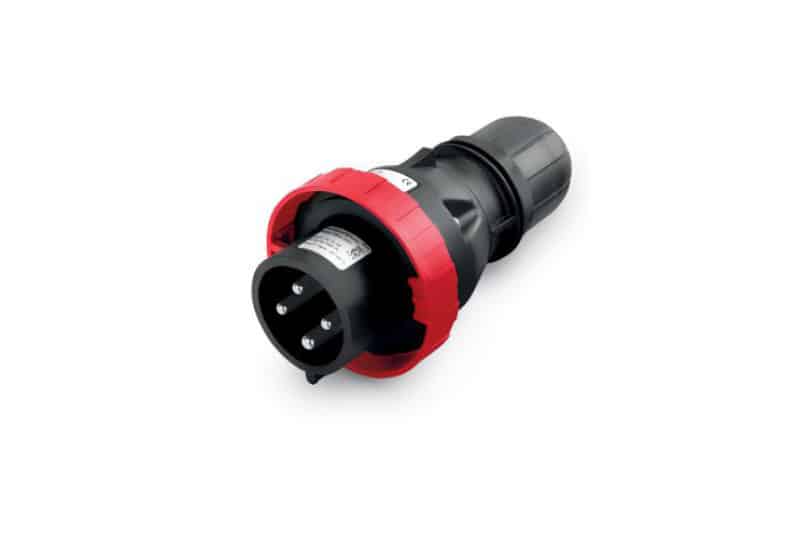

CEE-CONNECTOR, ATEX, MALE CONNECTOR, SHEATH CLAMP, EX II 2GD 16A 3P+ N+ E+ 6H 346-415V (RED) IP66, 60Hz 50Hz, Scame
Compact plug from the OPTIMA-EX[GD] series, designed for use in explosive environments (gas and dust).
Advantages:
- 16 A, 3P+N+E, 346-415 V AC, 6H
- ATEX II 2 GD Ex db eb IIC T6 Gb/Ex tb IIIC T80 °C Db
- IP66, IK07 protection
- Operating temperature -50 °C to +60 °C
- Available in 16A, 32A, 63A and 125A in 3, 4 and 5-pin versions
- Item no.: 55950
ATEX rocker switches

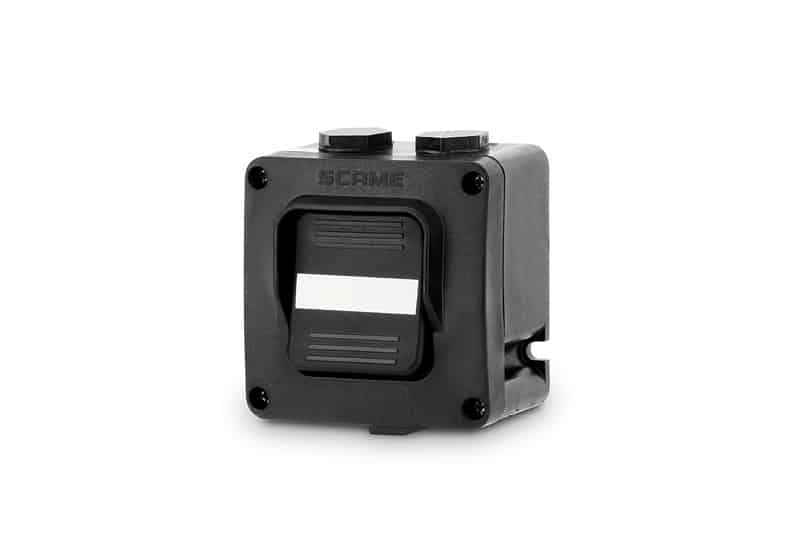

SWITCH, 16AX, 2P+ NO+ NO, EX II 2GD VIPPEKONTAKT, TERMOPLAST, IP66, 250V, 1xM20, IK7J, Scame
Thermoplastic enclosed toggle switch from the ROCKER-EX (GD) series.
Advantages:
- 16 AX, 250 V AC. 2 pole
- ATEX II 2 GD Ex db eb IIC T6 Gb/Ex tb IIIC T80 °C Db
- IP66, IK7J protection
- 1 x M20 cable entry
- Operating temperature -35 °C to +60 °C
- Option for AISI 316L steel screws
- Item no.: 55972

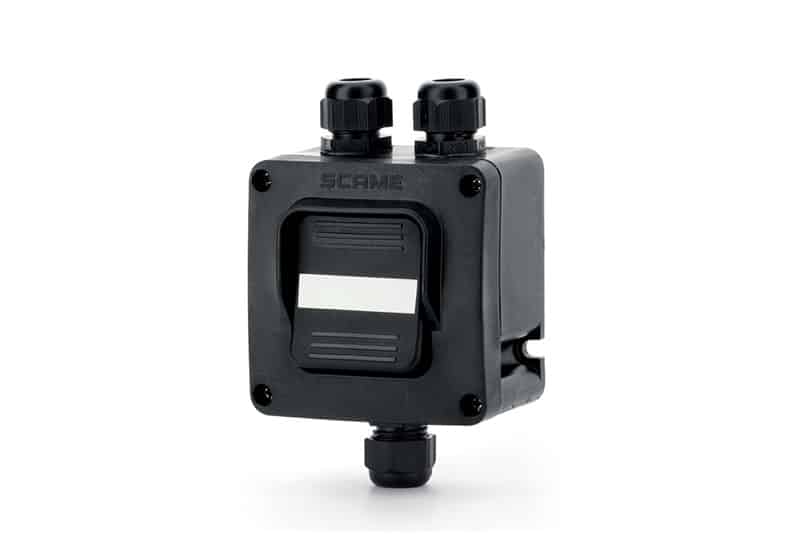

SWITCH, 16AX, 2P+ NO+ NO, EX II 2GD VIPPEKONTAKT, TERMOPLAST, IP66, 250V, 2xM20, IK7J, Scame
Thermoplastic enclosed toggle switch from the ROCKER-EX (GD) series.
Advantages:
- 16 AX, 250 V AC
- ATEX II 2 GD Ex db eb IIC T6 Gb/Ex tb IIIC T80 °C Db
- IP66, IK7J protection
- 2 x M20 cable entries
- Operating temperature -35 °C to +60 °C
- Option for AISI 316L steel screws
- Item no.: 55973
SWITCH, 16AX, 2P+ NO+ NO, EX II 2GD VIPPEKONTAKT, TERMOPLAST, IP66, 250V 1xM20+2xM20, Scame
Thermoplastic enclosed toggle switch from the ROCKER-EX (GD) series.
Advantages:
- 16 AX, 250 V AC
- ATEX II 2 GD Ex db eb IIC T6 Gb/Ex tb IIIC T80 °C Db
- IP66, IK7J protection
- 2 x M20 cable entries
- Operating temperature -35 °C to +60 °C
- Option for AISI 316L steel screws
- Item no.: 55974

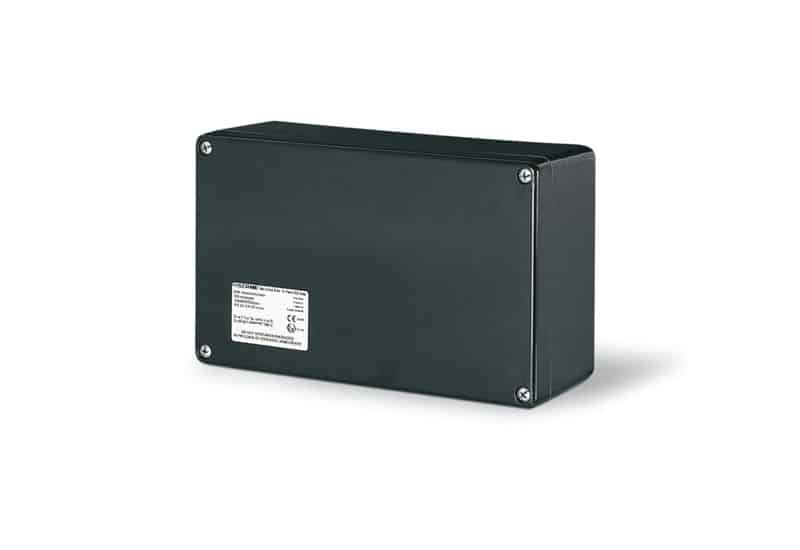

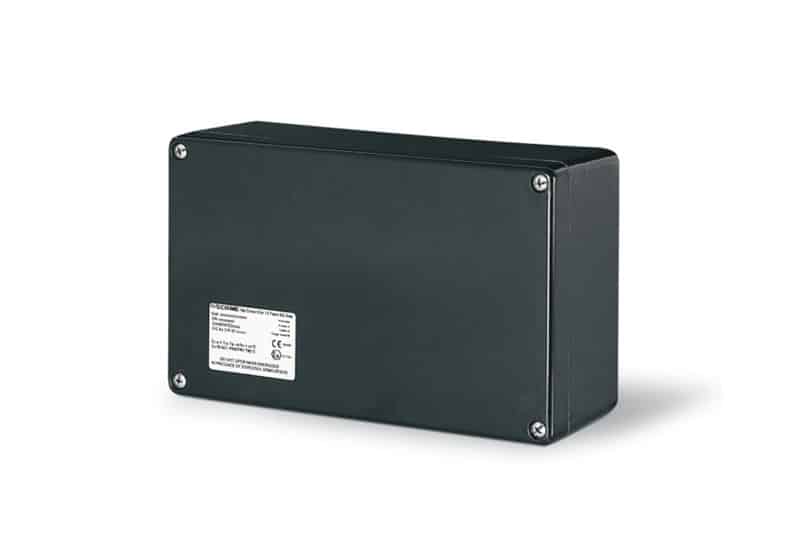

ATEX enclosures
ZENITH P-series
Empty enclosures in thermoset GRP material for zones 1-2 (gas) and 21-22 (dust).

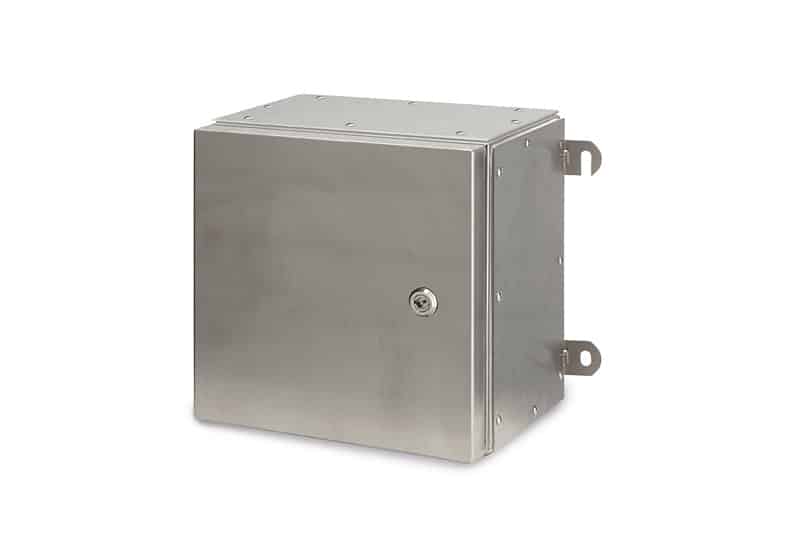

ZENITH-S series
Empty stainless steel enclosures for zones 1-2 (gas) and 21-22 (dust).
ALUBOX-EX series for II 3GD
Empty die-cast aluminum enclosures for zones 2-22 (dust).
ATEX extension cables

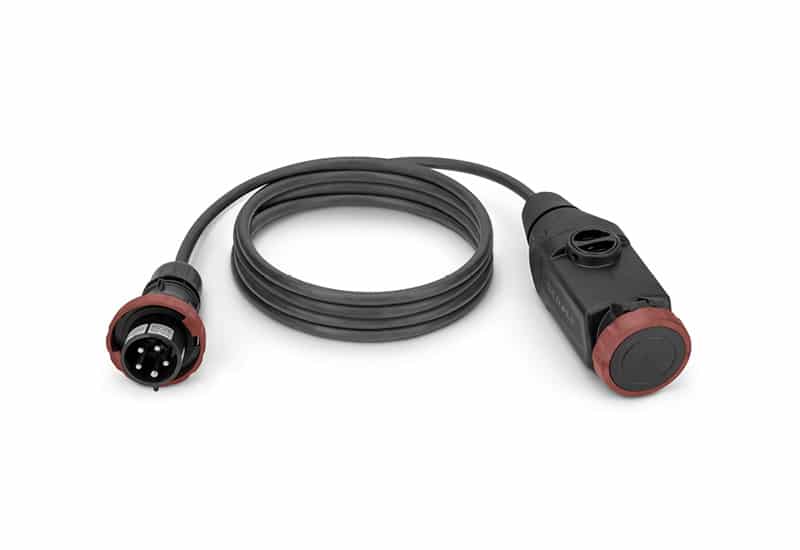

ATEX extension cable 25 m, 16 A, 3P+E, 759.1636-25, Scame
Extension cable for hazardous areas in the OPTIMA-EX[GD] series.
Advantages:
- 16 A, 3P+E, 380-415 V AC
- ATEX II 2 GD Ex db eb IIC T6 Gb/Ex tb IIIC T80 °C Db
- IP66 protection
- 4 x 2.5 mm² cable, 25 m length
ATEX extension cable 25 m 16 A 3P+N+E, 759.1637-25, Scame
Flexible extension cable from the OPTIMA-EX[GD] series for use in hazardous environments in zone 1/21.
Advantages:
- 16 A, 3P+N+E, 346-415 V AC
- ATEX II 2 GD Ex db eb IIC T6 Gb/Ex tb IIIC T80 °C Db
- IP66 protection, cable section 5 x 2.5 mm²
- Black thermoplastic cable, length 25 m, 6h position
ATEX extension cable 5 m, 759.3233-05, Scame
Short extension cable for use in zone 1/21 with high mechanical robustness.
Advantages:
- 32 A, 2P+E, 200-250 V AC
- ATEX II 2 GD Ex db eb IIC T6 Gb/Ex tb IIIC T80 °C Db
- IP66 protection
- 3 x 6 mm² cable, 5 m length
ATEX screw connections

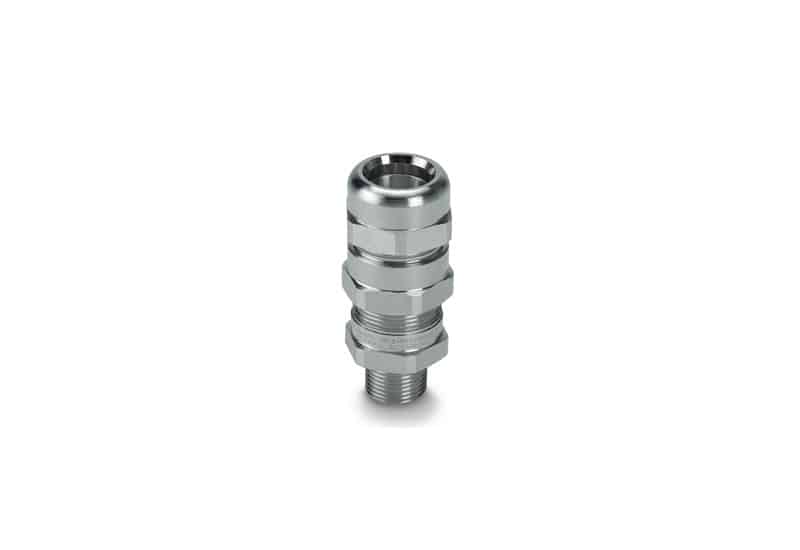

ATEX EMC cable gland M50, 805.RAS505050ES, Scame
Stainless steel cable gland with EMC protection and double sealing.
Advantages:
- ATEX II 2 GD Ex tb IIIC Db IP66
- IP66/IP68 tightness, AISI 316L stainless steel
- EPDM gasket, cable diameter 24-36 mm
- Temperature range: -40 °C to +100 °C
ATEX EMC cable gland M90, 805.RAS9190EN, Scame
Nickel-plated brass cable gland with EMC connection.
Advantages:
- ATEX II 2 GD Ex tb IIIC Db IP66
- IP66/IP68 tightness, EMC compliant
- Cable diameter 54-68 mm
- Temperature range: -40 °C to +100 °C

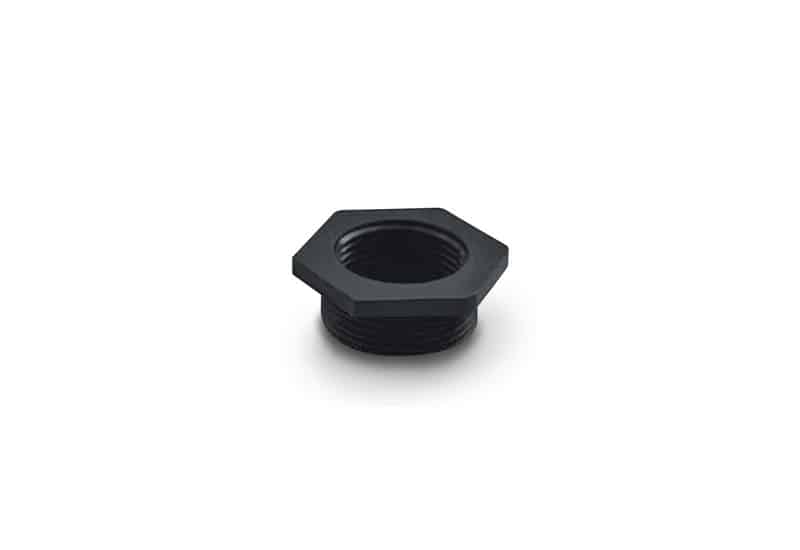

ATEX magnifier adapter M16/M12, 805.EX5016K, Scame
Adapter for thread transition between M12 and M16 in potentially explosive environments.
Advantages:
- ATEX II 2 GD Ex eb IIC/Ex tb IIIC
- IP66/IP68 tightness with neoprene gasket
- Thermoplastic material, black
- Temperature range: -35 °C to +95 °C
ATEX solenoid valves

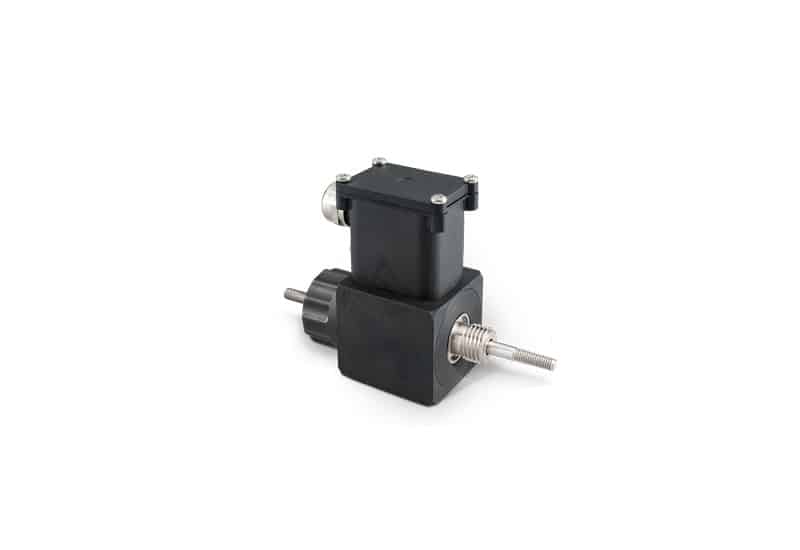

ATEX magnet, FMME, Magnet-Schultz
Explosion-proof magnet for hydraulic and mechanical applications.
Advantages:
- ATEX II 2 G Ex eb mb IIC T6/T4 Gb/II 2 D Ex tb IIIC T80°C/T130°C Db
- IP65/IP67 depending on design
- 5-230 V DC, S1 100 % ED
- Temperature range: -30 °C to +60 °C

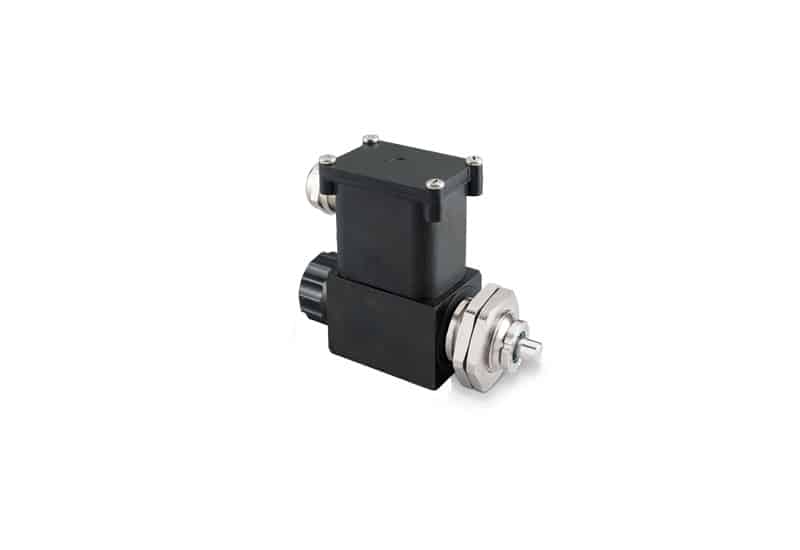

ATEX firing pin locking unit, FMME + FSTX, Magnet-Schultz
Electromagnetic shootbolt for locking machines in zone 1/21.
Advantages:
- ATEX II 2 G Ex eb mb IIC T6/T4 Gb/II 2 D Ex tb IIIC T80°C/T130°C Db
- IP65/IP67 protection
- 24 V DC, 100 % ED (S1)
- High locking force and linear stroke characteristics

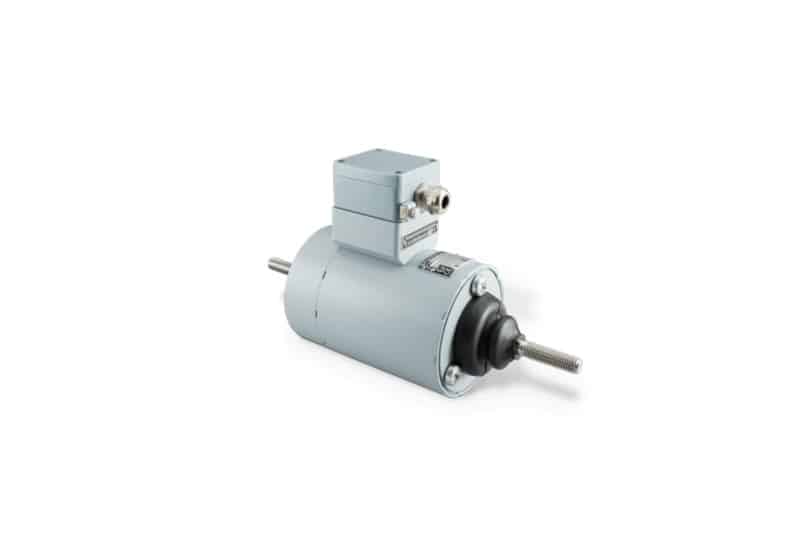

ATEX solenoid (DC), GTCE, Magnet-Schultz
Energy-efficient DC solenoid for hazardous areas in gas and dust zones.
Advantages:
- ATEX II 2 G Ex eb mb IIC T4/T5 Gb/II 2 D Ex tb IIIC T95°C/T130°C Db
- IP65 electrical/IP54 mechanical part
- 24 V DC, S1 100 %, sizes 50/100/140 mm
- Long lifespan and high impact force
