Introduction.
The UC-8112A-ME-T-LX is a new compact industrial computer with 1 GHz Armv7 Coretex-A8 processors, Moxa LTS Industrial Linux installed ready to use, 4G/LTE as standard, extended temperature and much more.
The UC-8112A-ME-T-LX is designed for industrial embedded applications for data collection, processing, management and more. The computer comes with 2x RS-232/422/485 serial ports and 2x 10/100 Mbps Ethernet ports as well as a Mini PCIe socket to support mobile or WiFi modules. These versatile features make the UC-8112A-ME-T-LX a powerful solution for many complex communication solutions.
The UC-8112A-ME-T-LX is built around a Cortex-A8 processor that is optimized for use in energy monitoring systems, but is also applicable to a variety of industrial solutions. This small industrial computer is a reliable and secure gateway for data collection, processing and management as well as a useful communication platform for many other large-scale implementations.
Models support extended temperature and can be delivered with LTE as standard. All devices are thoroughly tested in a test chamber, ensuring they can handle the extreme temperature range from -40°C to +70°C, even with the LTE module installed.
5-year warranty.
The UC-8112A-ME-T-LX is designed for industry and is manufactured from the most reliable components. This means you can expect a flawless installation for many years and Moxa provides a 5-year warranty on their series here, where other manufacturers only provide 1 or at best 2 years.
Extended temperature range.
Few embedded computers with a built-in LTE/4G module can handle temperatures below 0°C and above 50°C, but this new embedded computer from Moxa can handle anything out of the ordinary, from -40°C to 70°C. This means that it can boot up even when it has been sitting in a cold cabinet for several days, but also run flawlessly if it sits in a cabinet in the sun, where temperatures can be high. We recommend some form of cooling in the case, as high temperatures over a long period of time can shorten the lifespan (MTBF), but if the cooling fails, the computer will continue to run without breaking down.
Moxa Industrial Linux LTS.
When the UC-8112A-ME-T-LX series is delivered, Linux is already installed and the machine is ready to use. You install your program/application and you're up and running.
Moxa's Industrial Linux is based on Debian 9 and Moxa is committed to keeping this version running and updated at least 10 years into the future. This means that once you have your solution up and running, you can be sure that it will be supported for a long time to come and that you do not have to constantly update your program every time a new version is released.
LEDs you can control yourself.
There are a number of LEDs on the font to indicate status, such as USB, SD card, Power and signal strength. But in addition to these, there is also an LED that you can control from your program, as well as three LEDs that can be controlled in connection with program execution. We call these LEDs Diagnosis and they can help you if you ever need to troubleshoot an application that does not start up as expected. The technician reads the combination of the three LEDs, looks up the manuals and immediately knows what's wrong and what to look for.

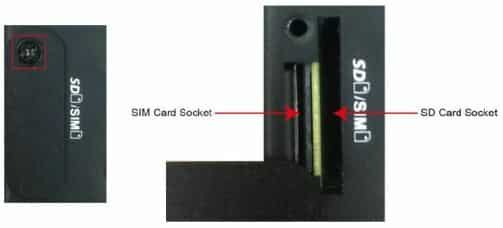

Slot for SD and SIM cards.
On the front you can easily access the SD and SIM card. However, they are hidden behind a small ’door’, which requires a screwdriver so you can't just ’grab’ the cards inappropriately.
